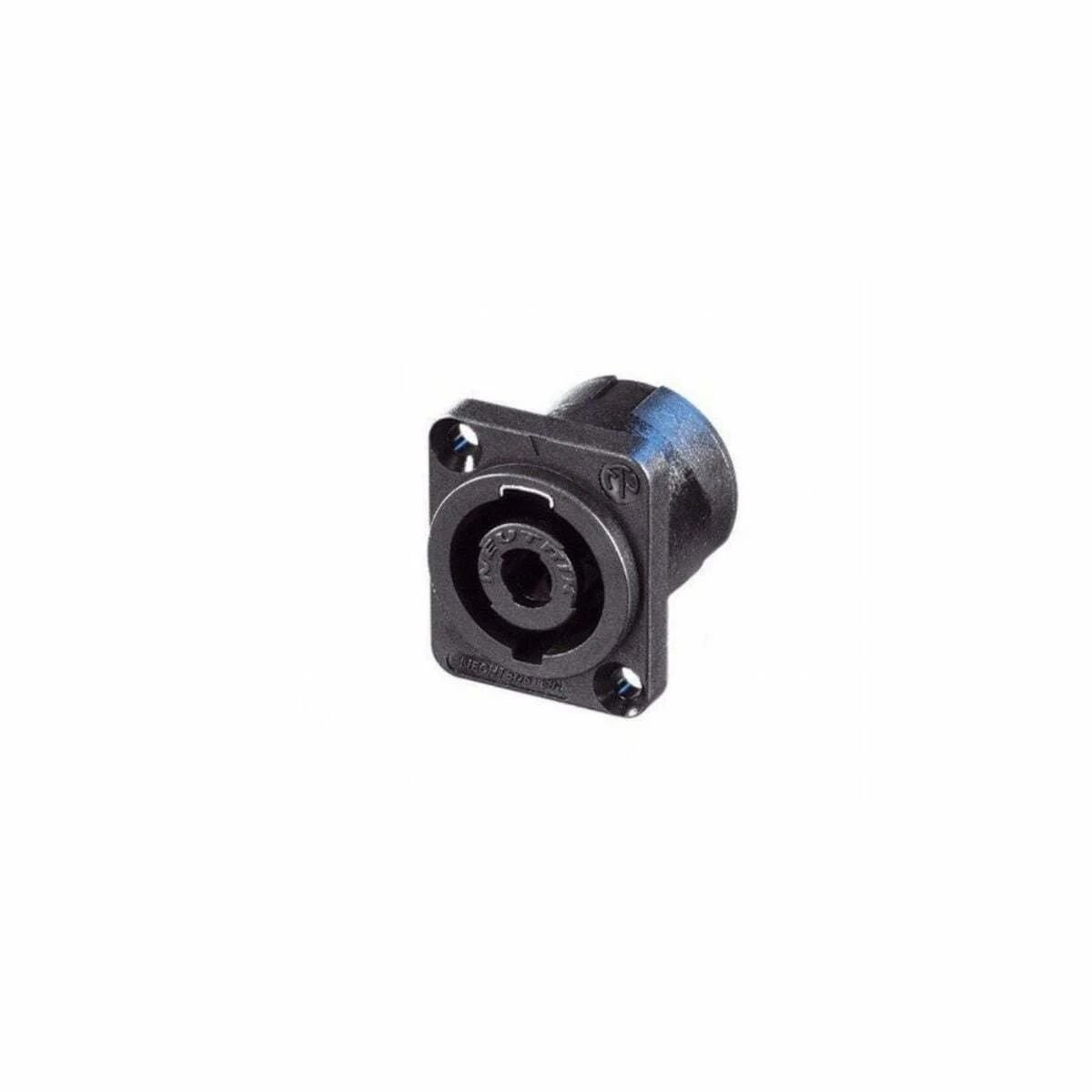

Neutrik NL4MP 4 Pin Şase Tipi Spekon Konnektör

4 pole chassis connector, black D-size flange, countersunk thru holes, 3/16" flat tabs

The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.

• Current rating 30 A rms
• Glass reinforced materials make it extremely robust and dependable
• Precise keyway for secure mating
• Accurate twist lock latching system
• Metal insert in locking area
• Airtight design - optimized for speaker applications
• Branded with unique hologram - guarantees genuine and authentic Neutrik product

Specs :

• SOCKET, SPEAKON, 4POLE
• Connector Type: RCA / Phono
• Series: -
• No. of Contacts: 4
• Gender: Receptacle
• Connector Colour: Black
• Contact Termination: Quick Connect
• Contact Plating: Silver
• Connector Mounting: Panel
• Connector Body Material: Metal
• SVHC: No SVHC (19-Dec-2012)
• Approval Bodies: IEC
• Colour: Black
• Connector Mounting Orientation: Panel
• Contact Material: Zinc Alloy
• Contact Resistance: 3mohm
• External Depth: 27mm
• External Length / Height: 31mm
• External Width: 26mm
• Insulation Resistance: 100Mohm
• Material: PA6, 30% GR
• Mounting Type: Panel
• Operating Temperature Max: 80°C
• Operating Temperature Min: -30°C
• RMS Current Max: 30A
• Termination Method: Tab
• Test Voltage: 4250V
• Voltage Rating V AC: 250V
